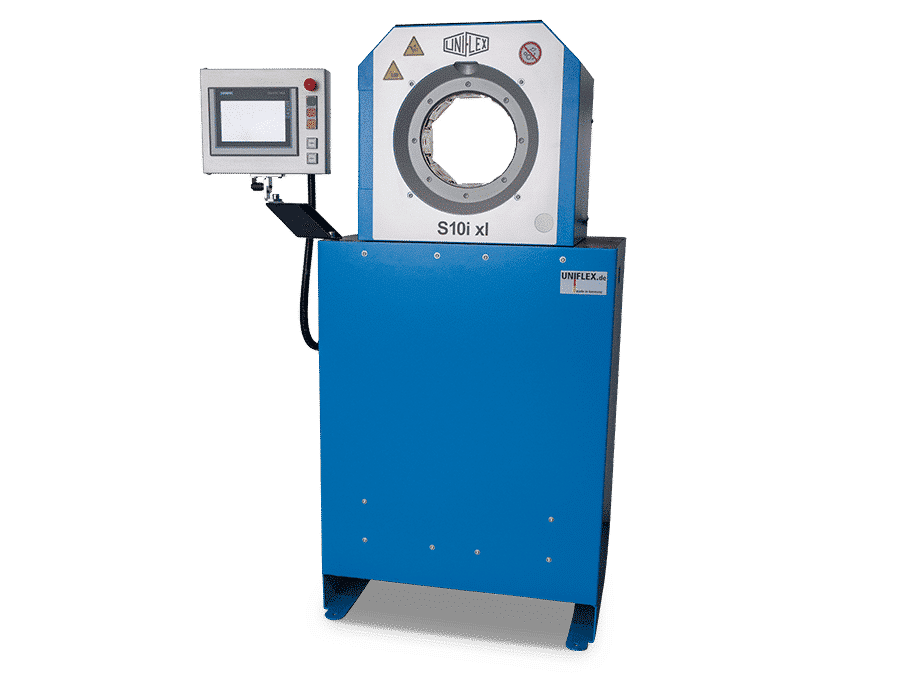

SH 10 i xl

Hose crimper

SH 10 XL

With its slim, innovative design, high user-friendliness, versatility and long service life, the 10 i xl / S 10 i xl Ecoline sets standards for quality and economy. Its compact design and increased opening travel (+61 mm) allow ergonomic working. The use of the long base dies allows 90° fittings up to 2 inches to be pressed, while the proven lubrication-free slide bearing technology reduces maintenance costs and increases production quality.

Variations:

S 10 i xl
S 10 i xl Ecoline

Request product

Features

Large opening travel

Easy pressing of elbow fittings without removing the pressing dies

Large pressing tool

Also allows crimping of up to 4 inch industrial hoses

Compact design

Finds place in any workshop

Plain bearing technology

Lubricant-free – for more cleanliness and longer machine life
Maximum productivity, with extremely low operating costs
No contamination of the hose line with grease
Ideal also for the food and pharmaceutical industry
Reduces press force loss by up to 20%
Consistenly accurate crimp force

Ecoline version

Entry level model with the same quality

CE compliant

Technical data

SH 10 XL
SH 10 XL Ecoline

Crimp force (kN/Ton)
2800/280
2800/280

No grease: 20% less friction

Control
Control A
Control A

SAE R 15 / 4SH* 1 piece fitting
2 “
2 “

4SH* 2 piece fitting
2 “
2 “

SAE R 15* 2 piece fitting
2 “
2 “

Max. crimp range (mm)
145
145

Opening travel (mm)
+ 61
+ 61

Opening without dies (mm)
200
200

Master dies length (mm)
126
126

Type of dies
239-xx / 237L **
239-xx / 237L **

Industrial
4 “
4 “

90° Elbows
2 “
2 “

Closing speed (mm/sec)
6,0
30/3,0

Pressing speed (mm/sec)
1,4
1,4

Opening speed (mm/sec)
17
30/8,5

Noise level (dBA)
63
70

Drive (kW)
5,5 kW 3 VAC
4 kW 3 VAC

Oil (l)
70
50

Length machine (mm)
690
700

Width machine (mm)
600
600

Height machine (mm)
1400
850

Weight (kg)
430
350

Options

12 VDC / 24 VDC
–

1 Phase
–

Control C.2

* Depending on the fitting.
** Without intermediate dies.

Type of dies

239-xx-øyy

ø mm	-mm-
6,8	50
9	50
10	50
12	65
14	65
16	65
17	65
19	65
20	65
22	65
24	65
26	65
28	80
30	80
31	80
32	80
34	80
36	80
38	80
39	80
40	80
44	80
47	100
50	100
54	100
57	100
62	100

237L

ø mm	-mm-
54	118
57	118
62	118
67	118
71	118
74	118
78	118
84	118
86	118
90	118
96	118
103	118
106	126
111	126
116	126
121	126
126	126
131	126

First Class Advantages

Greaseless

Plain bearing plates on the pressing tool: higher performance due to less friction, no locking on the pressing tool and no contamination by lubricant, 20% less friction loss
