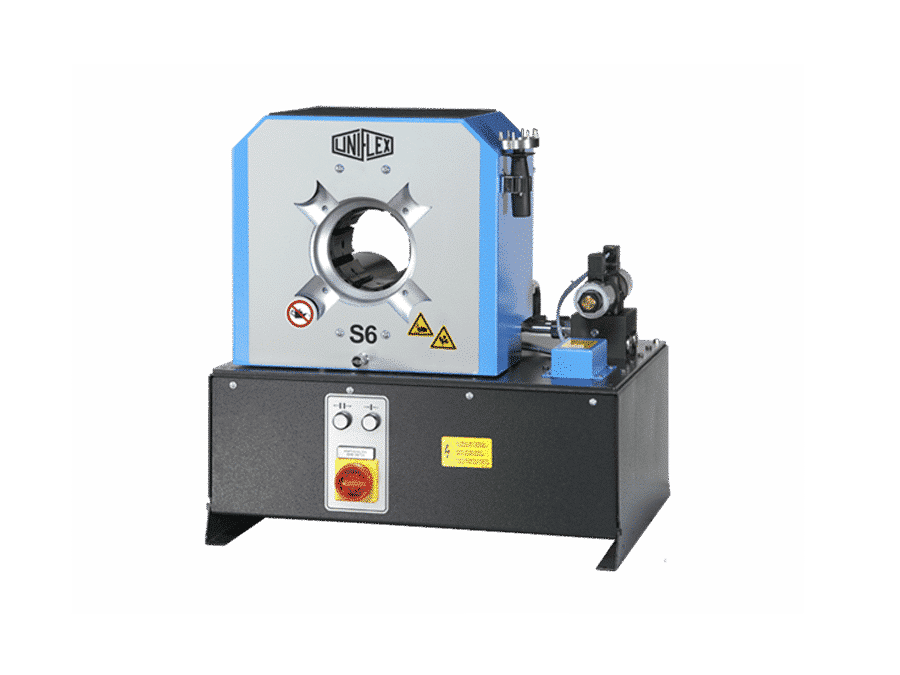

SC 6 S Ecoline

Thanks to its slim, innovative design, high user-friendliness, versatility and long service life, the S 6 series sets standards for quality and economy. Their compact design allows ergonomic working. The long base dies enable the pressing of 90° fittings up to 2 inches, the proven lubrication-free slidestorage technology reduces maintenance costs and increases production quality. Now also in reinforced version up to 280 tons!

Variations:

S 6 S Ecoline
S 6 S

Request product

Technical data

Crimp force (kN/Ton)

No grease: 20% less friction

Control

SAE R 15 / 4SH* 1 piece fitting

4SH* 2 piece fitting

SAE R 15* 2 piece fitting

Max. crimp range (mm)

Opening travel (mm)

Opening without dies (mm)

Master dies length (mm)

Type of dies

Industrial

90° Elbows

Closing speed (mm/sec)

Pressing speed (mm/sec)

Opening speed (mm/sec)

Noise level (dBA)

Drive (kW)

Oil (l)

Length machine (mm)

Width machine (mm)

Height machine (mm)

Weight (kg)

Options

12 VDC / 24 VDC

1 Phase

3 phases

Control C.2

* Abhängig von der Armatur.
** Ohne Zwischenbacken: Nur S 6

Type of dies

239-xx-øyy

ø mm	-mm-
6,8	50
9	50
10	50
12	65
14	65
16	65
17	65
19	65
20	65
22	65
24	65
26	65
28	80
30	80
31	80
32	80
34	80
36	80
38	80
39	80
40	80
44	80
47	100
50	100
54	100
57	100
62	100

First Class Advantages

Greaseless

Plain bearing plates on the pressing tool: higher performance due to less friction, no locking on the pressing tool and no contamination by lubricant, 20% less friction loss
