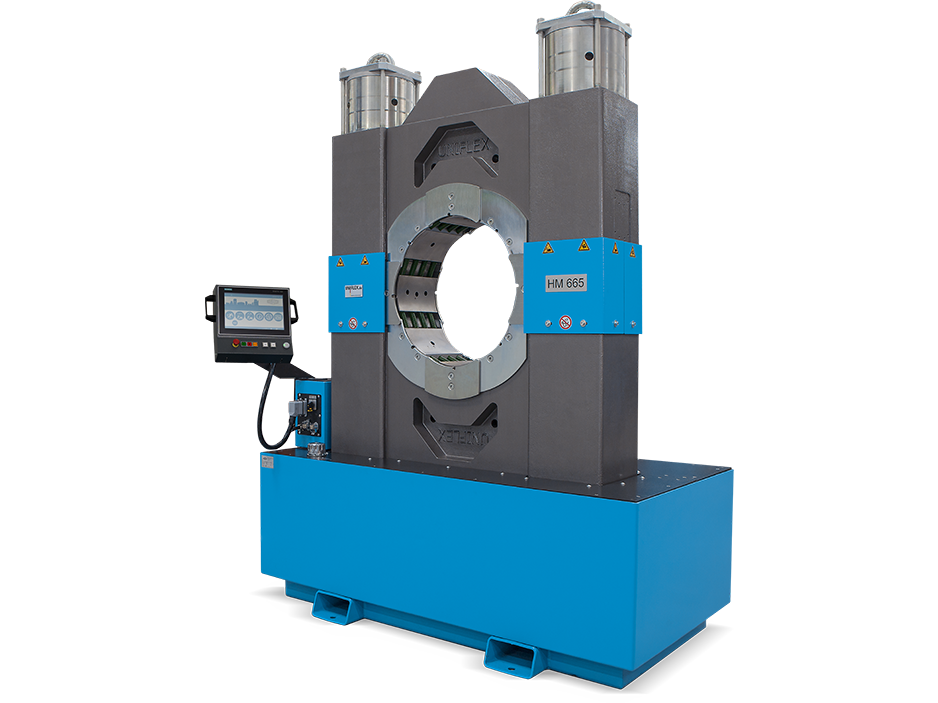

Hose press

HM 665


With its distinctive design and enormous pressing force of up to 6,000 kN, the HM 665 stands for quality, economy and design. With this model, crimps up to 12 inches are possible for industrial hoses (depending on the fitting) without any problems. The main field of application is industrial grouting of mounting irons, steel cables, cables and insulators.


Features

High-level components and system solutions

  • HiLo cylinder – higher performance with reduced heat generation/ without overheating
  • Compact design allows ergonomic working
  • Long base dies enable pressing of all valve types
  • Lateral reinforcements optimize product quality
  • Low noise level due to high quality pumps

Fixed 6 o’clock jaw

  • Safe and force-saving positioning of the workpiece
  • Increases productivity and profitability
  • Improves occupational safety and reduces operator fatigue

Plain bearing technology

  • Lubricant-free – for more cleanliness and a longer service life of the machine
  • Maximum productivity, with extremely low operating costs
  • Chips do not settle in grease and dirt, thus no tool wear
  • No contamination of the hose line with grease
    – Ideal for food and pharmaceutical hoses
    – less tool wear
  • Reduces press force loss by up to 20%
  • High process and repeat accuracy

CE compliant


Technical data

  •
  • HM 665
  • Crimp force (kN/Ton)

  • 6000 / 600
  • Lubrication eliminated: 20% less friction

  • Control

  • Control C.2 + Touch
  • SAE R 15 / 4SH* 1 piece fitting

  • 3 “
  • SAE R 15 / 4SH* 2 piece fitting

  • 3 “
  • Max. crimp range (mm)

  • 450 **
  • Opening travel (mm)

  • + 180
  • Opening without dies (mm)

  • 580
  • Type of dies

  • 298 / 247 / 245 / 237L / 239-xx
  • Industrial

  • 12″ / 16″ *
  • 90° Elbows

  • 3″
  • Closing speed (mm/sec)

  • 17
  • Pressing speed (mm/sec)

  • 0,9
  • Opening speed (mm/sec)

  • 25
  • Noise level (dBA)

  • 69
  • Drive (kW)

  • 5,5 kW 3 VAC
  • Oil (l)

  • 400
  • Length machine (mm)

  • 970
  • Width machine (mm)

  • 1800
  • Height machine (mm)

  • 2400
  • Aggregate length (mm)

  • integriert
  • Aggregate width (mm)

  • integriert
  • Aggregate height (mm)

  • integriert
  • Weight (kg)

  • 5200
  • HiDS (Efficient hydraulic
    Suction System)

  • Options

* Pipe fittings with special dies.
** Depending on the fitting.


Video


Type of dies

Pressbacken
298
ø mm -mm-
200 250
220 250
240 250
260 250
280 250
300 250
320 250
340 250
360 250
380 250
247
ø mm -mm-
136 130
146 150
156 150
170 170
185 200
200 200
215 200
230 200
245 200
260 200
275 200
290 200
305 200
245
ø mm -mm-
103 130
106 130
111 130
116 130
121 130
126 130
131 130
136 130
146 150
156 150
170 150
185 150
200 150
237L
ø mm -mm-
54 118
57 118
62 118
67 118
71 118
74 118
78 118
84 118
86 118
90 118
96 118
103 118
106 126
111 126
116 126
121 126
126 126
131 126
239-xx-øyy



ø mm -mm-
6,8 50
9 50
10 50
12 65
14 65
16 65
17 65
19 65
20 65
22 65
24 65
26 65
28 80
30 80
31 80
32 80
34 80
36 80
38 80
39 80
40 80
44 80
47 100
50 100
54 100
57 100
62 100

First Class Advantages

Greaseless
Greaseless
Plain bearing plates on the pressing tool: higher performance due to less friction, no locking on the pressing tool and no contamination by lubricant, 20% less friction loss
Universal
Universal
Usable for all types of hose assemblies and fittings
6 o'clock baking
6 o’clock baking
Ergonomic
Ergonomic
Quiet
Quiet
Sustainable
Sustainable
Energy efficient and durable

Accessories

Extend this machine at all times with the following accessories:


Description

Our long base dies allow all types of fittings to be pressed.
The fixed 6 o’clock jaw enables the safe and force-saving positioning of the workpiece
