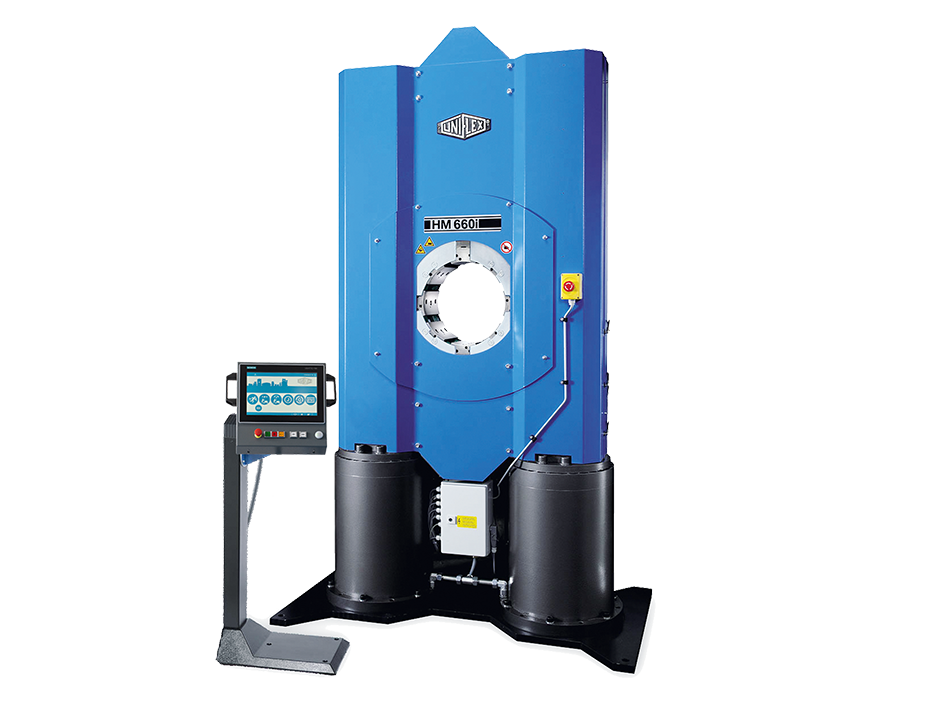

Hose press

HM 660

With their striking design and enormous pressing force of up to 8,000 kN, the HM 660 sets standards for quality, economy and design. With this model, crimping up to 10 inches for industrial hoses (depending on the fitting) is possible without any problems. The main field of application is the industrial pressing of monier bars, steel cables, cables and insulators.

Request product

Features

High-level components and system solutions

HiLo cylinder – higher performance with reduced heat generation/ without overheating
Compact design allows ergonomic working
Long base dies enable pressing of all valve types
Lateral reinforcements optimize product quality
Low noise level due to high quality pumps

Fixed 6 o’clock jaw

Safe and force-saving positioning of the workpiece
Increases productivity and profitability
Improves occupational safety and reduces operator fatigue

Plain bearing technology

Lubricant-free – for more cleanliness and a longer service life of the machine
Maximum productivity, with extremely low operating costs
Chips do not settle in grease and dirt, thus no tool wear
No contamination of the hose line with grease
– Ideal for food and pharmaceutical hoses
– less tool wear
Reduces press force loss by up to 20%
High process and repeat accuracy

CE compliant

Technical data

HM 660

Crimp force (kN/Ton)
8000 / 800

Lubrication eliminated: 20% less friction

Control
Control C.2 + Touch

SAE R 15 / 4SH* 1 piece fitting
3 “

SAE R 15 / 4SH* 2 piece fitting
3 “

Max. crimp range (mm)
325 **

Opening travel (mm)
+ 120

Opening without dies (mm)
395

Type of dies
246 / 237L / 239-xx

Industrial
10″

90° Elbows
3″

Closing speed (mm/sec)
15

Pressing speed (mm/sec)
2

Opening speed (mm/sec)
15

Noise level (dBA)
69

Drive (kW)
18,5 kW 3 VAC

Oil (l)
300

Length machine (mm)
1450

Width machine (mm)
1050

Height machine (mm)
2470

Aggregate length (mm)
700

Aggregate width (mm)
1160

Aggregate height (mm)
1360

Weight (kg)
4200 + 450

HiDS (Efficient hydraulic
Suction System)

Options

* Pipe fittings with special dies.
** Depending on the fitting.

Video

Type of dies

246

ø mm	-mm-
136	150
146	150
156	150
170	170
185	200
200	200
215	200
230	200
245	200
260	200

237L

ø mm	-mm-
54	118
57	118
62	118
67	118
71	118
74	118
78	118
84	118
86	118
90	118
96	118
103	118
106	126
111	126
116	126
121	126
126	126
131	126

239-xx-øyy

ø mm	-mm-
6,8	50
9	50
10	50
12	65
14	65
16	65
17	65
19	65
20	65
22	65
24	65
26	65
28	80
30	80
31	80
32	80
34	80
36	80
38	80
39	80
40	80
44	80
47	100
50	100
54	100
57	100
62	100

First Class Advantages

Greaseless

Plain bearing plates on the pressing tool: higher performance due to less friction, no locking on the pressing tool and no contamination by lubricant, 20% less friction loss
