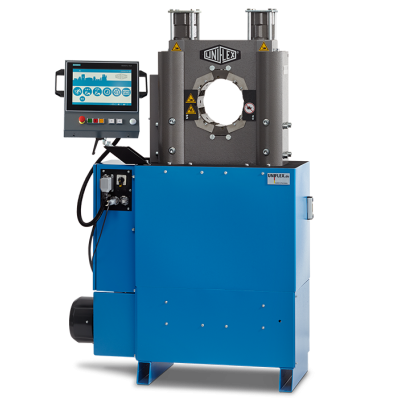

Hose press

HM 380

With its slim, innovative design, high user-friendliness, versatility and long service life, the HM 380 sets standards for quality and economy. A reliable classic, the HM 380 combines all the outstanding features of production presses. It is compact, powerful, allows ergonomic work and convinces with its solid construction.

Request product

Features

High-level components and system solutions

HiLo cylinder – higher performance with reduced heat generation/ without overheating
Compact design allows ergonomic working
Long base dies enable pressing of all valve types
Lateral reinforcements optimize product quality
Low noise level due to high quality pumps

Fixed 6 o’clock jaw

Safe and force-saving positioning of the workpiece
Increases productivity and profitability
Improves occupational safety and reduces operator fatigue

Plain bearing technology

Lubricant-free – for more cleanliness and a longer service life of the machine
Maximum productivity, with extremely low operating costs
Chips do not settle in grease and dirt, thus no tool wear
No contamination of the hose line with grease
– Ideal for food and pharmaceutical hoses
– less tool wear
Reduces press force loss by up to 20%
High process and repeat accuracy

CE compliant

Technical data

HM 380

Crimp force (kN/Ton)
3400 / 340

Lubrication eliminated: 20% less friction

Control
Control C.2 + Touch

SAE R 15 / 4SH* 1 piece fitting
3 “

SAE R 15 / 4SH* 2 piece fitting
3 “

Max. crimp range (mm)
165 **

Opening travel (mm)
+ 70

Opening without dies (mm)
215

Base jaw length (mm)
126

Type of dies
237L / 239-xx

Industrial
4″ *

90° Elbows
3″ *

Closing speed (mm/sec)
29

Pressing speed (mm/sec)
1,9

Opening speed (mm/sec)
44

Noise level (dBA)
62

Drive (kW)
4 kW 3 VAC

Oil (l)
100

Length machine (mm)
1200

Width machine (mm)
600

Height machine (mm)
1700

Weight (kg)
750

CGS (Guide for
limitation of the conicity)

HiDS (Efficient hydraulic
Suction System)

Options

* Depending on the fitting.
** With base dies.

Video

Type of dies

237L

ø mm	-mm-
54	118
57	118
62	118
67	118
71	118
74	118
78	118
84	118
86	118
90	118
96	118
103	118
106	126
111	126
116	126
121	126
126	126
131	126

239-xx-øyy

ø mm	-mm-
6,8	50
9	50
10	50
12	65
14	65
16	65
17	65
19	65
20	65
22	65
24	65
26	65
28	80
30	80
31	80
32	80
34	80
36	80
38	80
39	80
40	80
44	80
47	100
50	100
54	100
57	100
62	100

First Class Advantages

Greaseless

Plain bearing plates on the pressing tool: higher performance due to less friction, no locking on the pressing tool and no contamination by lubricant, 20% less friction loss
