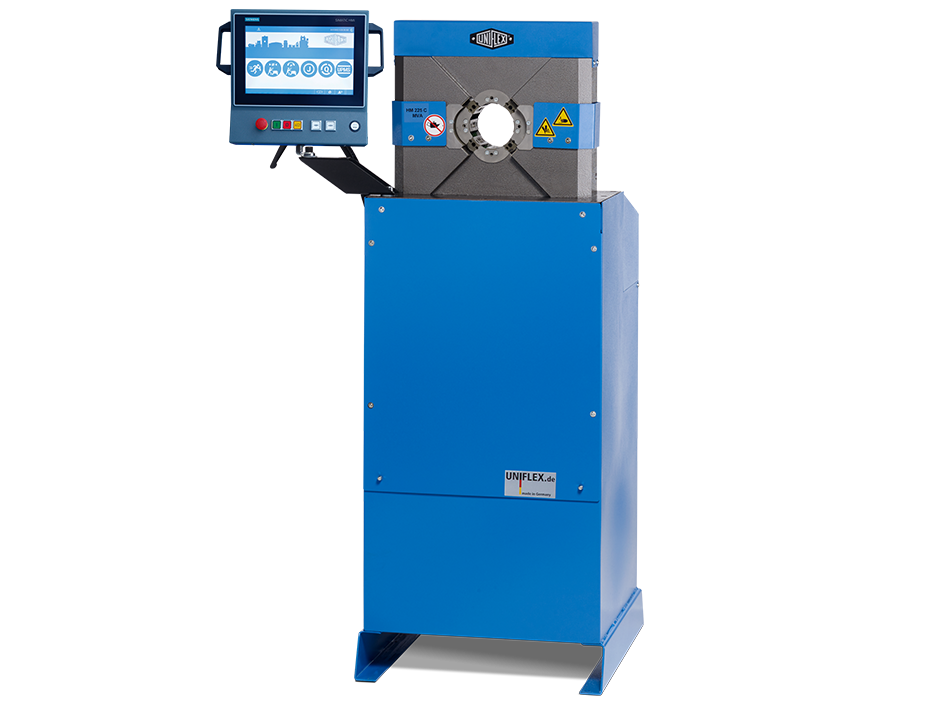

Hose press

HM 225


With its slim and innovative design, high user-friendliness and long service life, the HM 225 tube press sets standards for quality and economy.

Its high pressing force and all-round good accessibility (operation from both sides as well as loading possible) offer everything a production press needs for pressing nominal diameters up to 1 1/4″ 4 SH and up to 2″ for industrial hoses.


Features

High-level components and system solutions

  • Compact design allows ergonomic working.
  • HiLo cylinder – higher performance with reduced heat generation/ without overheating
  • Low noise level due to high quality pumps
  • Crimping of all valve types due to long base dies
  • Reinforced tools optimize product quality

Fixed 6 o’clock jaw

  • Safe and force-saving positioning of the workpiece
  • Increases productivity and profitability
  • Improves occupational safety and reduces operator fatigue

Plain bearing technology

  • Lubricant-free – for more cleanliness and longer machine life
  • Maximum productivity, with extremely low operating costs
  • No contamination of the hose line with grease
  • Ideal also for the food and pharmaceutical industry
  • Reduces press force loss by up to 20%
  • Consistenly accurate crimp force

CE compliant


Technical data

  •
  • HM 225
  • Crimp force (kN/Ton)

  • 1600 / 160
  • Lubrication eliminated: 20% less friction

  • Control

  • Control C.2 + Touch
  • SAE R 15 / 4SH* 1 piece fitting

  • 1¼ “
  • 4SH* 2 piece fitting

  • 1¼ “
  • SAE R 15* 2 piece fitting

  • 1¼ “
  • Max. crimp range (mm)

  • 70
  • Opening travel (mm)

  • + 40
  • Opening without dies (mm)

  • 110
  • Base jaw length (mm)

  • 90
  • Type of dies

  • 239 -xx-ø-yy
  • Industrial

  • 2 “
  • 90° Elbows

  • 1½ “
  • Closing speed (mm/sec)

  • 19/30
  • Pressing speed (mm/sec)

  • 1,5/3
  • Opening speed (mm/sec)

  • 19/30
  • Noise level (dBA)

  • 53
  • Drive (kW)

  • 4 kW 3 VAC
  • Oil (l)

  • 80
  • Length machine (mm)

  • 645
  • Width machine (mm)

  • 560
  • Height machine (mm)

  • 1470
  • Weight (kg)

  • 470
  • Options

* Depending on the fitting.
** Standard: Half power, double speed. (Switchable by control)
*** Outside base jaw lengths: UNIFLEX REQUEST


Video


Type of dies

Pressbacken
239*-xx-øyy



ø mm -mm-
6,8 50
9 50
10 50
12 50
14 50
16 65
17 65
19 65
20 65
22 65
24 65
26 65
28 80
30 80
31 80
32 80
34 80
36 80
38 80
39 80
40 80
44 80
47* 100
50* 100
54* 100
57* 100
62* 100
*Outside basic jaw lengths: request
