Hose skiving machines

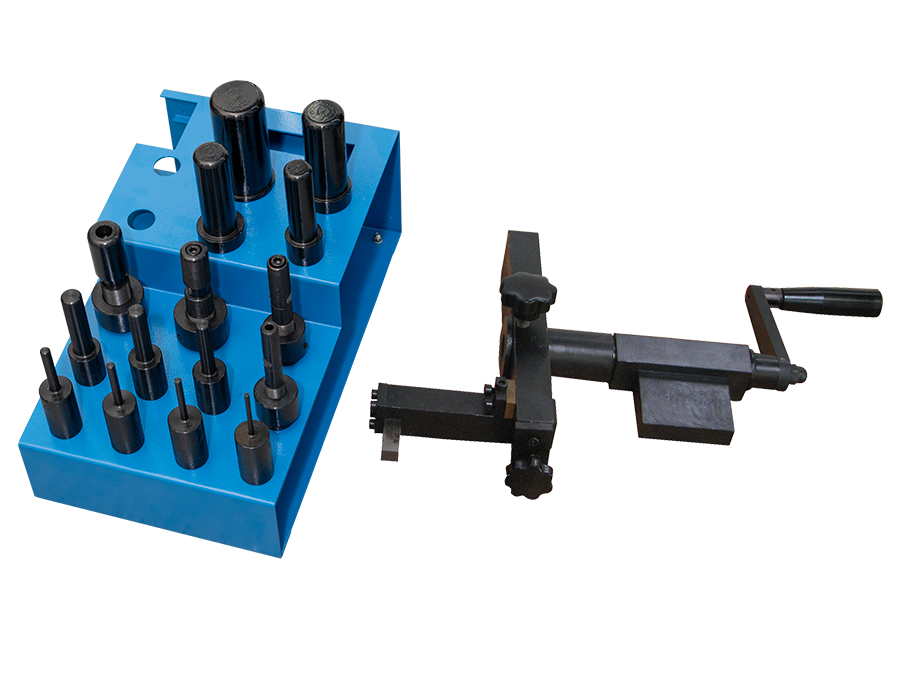

USM 1 / 2

The USM 1 peels from 5/8″ to 2″ on the inside and  3/16-1 1/4” on the outside.

The USM 2 peels from 5/8″ to 2″ on the inside and 3/16″ – 2″ on the outside.

Request product

Features

User-friendly operation for optimal results

CE compliant

  • Protective hood safety flap for injury-free work
  • Safe mounting on the workbench

Technical data

  •
  • USM 1
  • USM 2

  • Inner peeling

  • Ø 5/8″ – 2″
  • Ø 5/8″ – 2″

  • Outside peeling

  • Ø 3/16-1 1/4”
  • Ø 3/16″ – 2″

  • Drive

  • Manual
  • Manual

  • Application type

  • Mobil
  • Mobil

  • Noise level (dBA)

  • –
  • –

  • Length machine (mm)

  • 338
  • 338

  • Width machine (mm)

  • 465
  • 465

  • Height machine (mm)

  • 445
  • 445

  • Weight (kg)

  • 16
  • 16

  • Tool speed (rpm)

  • –
  • –
  • Options

  • Table

  • SSG

Video

First Class Advantages

Packages

The following products are supplied with the purchase of the product and are included in the price:

  • USM 2: + external retaining mandrels (PJ_EXB 250- DN 05, 06, 08, 10, 12, 16, 19, 25, 31,38, 51) + internal skiving mandrels (UIS.2 DN 16, 19, 25, 31, 38, 51)
