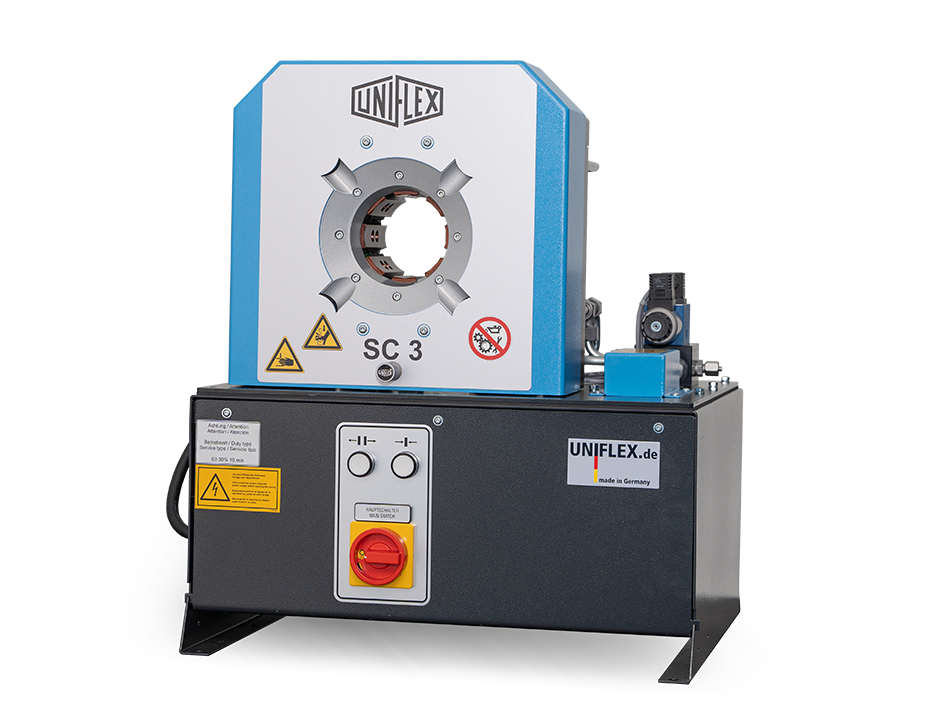

SC 3 Ecoline
SC 3 Ecoline
Hose crimper

SC 3 | SC 4

Thanks to its slim, innovative design, high user-friendliness, versatility and long service life, the SC 3 series sets standards for quality and economy. Their compact design allows ergonomic working. The long base dies enable the pressing of 90° fittings up to 1 1/4 inch, the proven lubrication-free slide bearingbearing technology reduces maintenance costs and increases production quality.

Variations:

  • SC 3 Ecoline
  • SC 4 Ecoline
  • SC 4 Ecoline C.2
Request product

Features

Large opening travel

  • Easy pressing of elbow fittings without removing the pressing dies

Compact design

  • Finds place in any workshop

Plain bearing technology

  • Lubricant-free – for more cleanliness and longer machine life
  • Maximum productivity, with extremely low operating costs
  • No contamination of the hose line with grease
  • Ideal also for the food and pharmaceutical industry
  • Reduces press force loss by up to 20%
  • Consistenly accurate crimp force

CE compliant

Technical data

  •
  • SC 3 Ecoline
  • SC 4 Ecoline
  • SC 4 Ecoline C.2

  • Crimp force (kN/Ton)

  • 1200/120
  • 1800/180
  • 1800/180

  • No grease: 20% less friction

  • Control

  • Control A
  • Control A
  • Control C.2 + Touch

  • SAE R 12 / 4SP* 1 piece fitting

  • 1½ “
  • 2 “
  • 2 “

  • SAE R 15 / 4SH* 2 piece fitting

  • 1″
  • 1¼ “
  • 1 ½ “

  • SAE R 12 / 4SP* 2 piece fitting

  • 1¼ “
  • 2 “
  • 2 “

  • Max. crimp range (mm)

  • 70
  • 70
  • 70

  • Opening travel (mm)

  • + 35
  • + 35
  • + 35

  • Opening without dies (mm)

  • 105
  • 105
  • 105

  • Master dies length (mm)

  • 100
  • 100
  • 100

  • Type of dies

  • 239-xx-Ø
  • 239-xx
  • 239-xx

  • Industrial

  • 2 “
  • 2 “
  • 2 “

  • 90° Elbows

  • 1½ “
  • 1½ “
  • 1½ “

  • Closing speed (mm/sec)

  • 4
  • 2,7
  • 2,7

  • Pressing speed (mm/sec)

  • 4
  • 2,7
  • 2,7

  • Opening speed (mm/sec)

  • 6,5
  • 4,7
  • 4,7

  • Noise level (dBA)

  • 69
  • 69
  • 69

  • Drive (kW)

  • 3 kW 3 VAC
  • 3 kW 3 VAC
  • 3 kW 3 VAC

  • Oil (l)

  • 35
  • 35
  • 35

  • Length machine (mm)

  • 592
  • 592
  • 720

  • Width machine (mm)

  • 545
  • 545
  • 600

  • Height machine (mm)

  • 672
  • 672
  • 672

  • Weight (kg)

  • 150
  • 160
  • 203
  • Options

  • 12 VDC / 24 VDC

  • –
  • –
  • –

  • 1 Phase

* Depending on the fitting.

Video

Type of dies

Pressbacken
239-xx-øyy



ø mm -mm-
6,8 50
9 50
10 50
12 65
14 65
16 65
17 65
19 65
20 65
22 65
24 65
26 65
28 80
30 80
31 80
32 80
34 80
36 80
38 80
39 80
40 80
44 80
47 100
50 100
54 100
57 100
62 100

First Class Advantages

Packages

A Package includes the machine with dies.

  • Package = Machine + PB Ø 17, 20, 24, 28, 32, 40, 44, 50 + QDS 239 B + QDC 239.5

Accessories

Extend this machine at all times with the following accessories:

Description

Gleitlagertechnologie
The SC 3 series is equipped with the clean slide bearing technology.
90-Grad-Endstueck
The SC 3 series crimps even short 90° fittings with a long end piece. This is not possible with any other conventional machine.
Positionsbohrungen
The two positioning holes in the base dies can be used to perform pressing operations on the front and rear sides (not on the Light models).
12-VDC-24-VDC-Aggregate
The 12 VDC/24 VDC power packs offer space- and weight-saving application possibilities, e.g. for the assembly of service vehicles.
PB-239-MD-70
295.005.3 Filler piece for main jaw S 3 L (ø 70 mm)
