HM 380
HM 380
Hose press

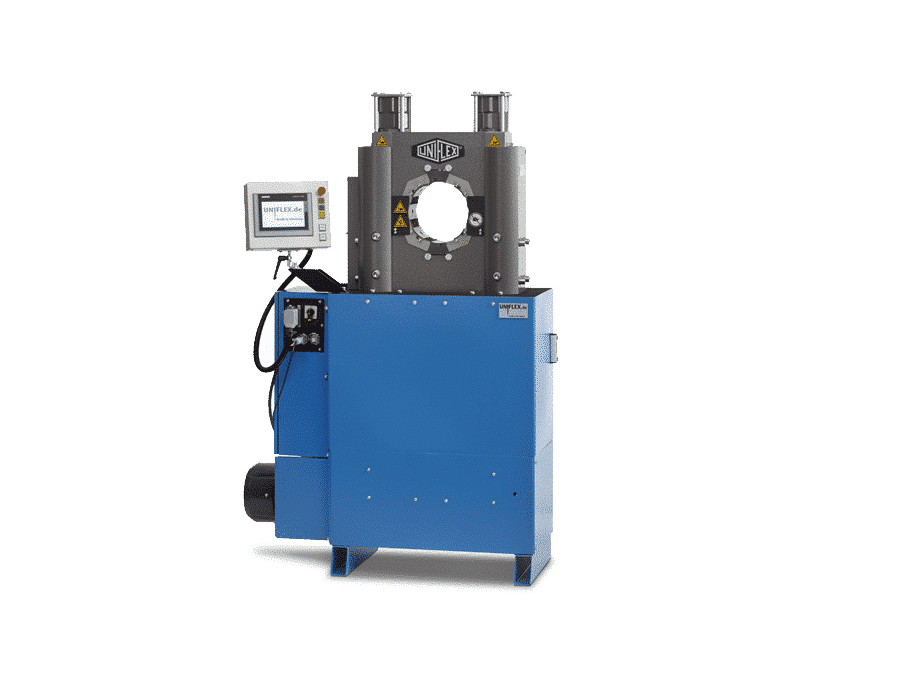

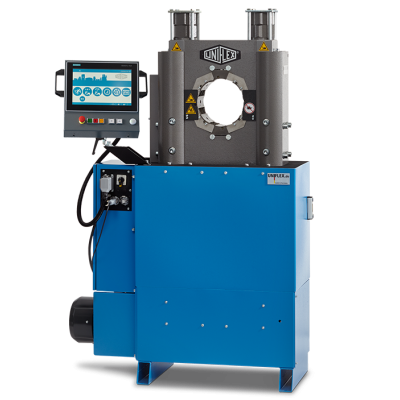

HM 375

With its slim, innovative design, high user-friendliness, versatility and long service life, the HM 375 sets standards for quality and economy. A reliable classic, the HM 375 combines all the outstanding features of production presses. It is compact, powerful, allows ergonomic work and convinces with its solid construction.

Request product

Features

High-level components and system solutions

  • Compact design allows ergonomic working.
  • HiLo cylinder – higher performance with reduced heat generation/ without overheating
  • Low noise level due to high quality pumps
  • Crimping of all valve types due to long base dies
  • Reinforced tools optimize product quality

Fixed 6 o’clock jaw

  • Safe and force-saving positioning of the workpiece
  • Increases productivity and profitability
  • Improves occupational safety and reduces operator fatigue

Plain bearing technology

  • Lubricant-free – for more cleanliness and longer machine life
  • Maximum productivity, with extremely low operating costs
  • No contamination of the hose line with grease
  • Ideal also for the food and pharmaceutical industry
  • Reduces press force loss by up to 20%
  • Consistenly accurate crimp force

CE compliant

Technical data

  •
  • HM 375

  • Crimp force (kN/Ton)

  • 3150 / 315

  • Lubrication eliminated: 20% less friction

  • Control

  • Control C.2 + Touch

  • SAE R 15 / 4SH* 1 piece fitting

  • 3 “

  • SAE R 15 / 4SH* 2 piece fitting

  • 2½ “

  • Max. crimp range (mm)

  • 165 **

  • Opening travel (mm)

  • + 70

  • Opening without dies (mm)

  • 215

  • Base jaw length (mm)

  • 126

  • Type of dies

  • 237L / 239-xx

  • Industrial

  • 4″ *

  • 90° Elbows

  • 3″ *

  • Closing speed (mm/sec)

  • 23

  • Pressing speed (mm/sec)

  • 1,4

  • Opening speed (mm/sec)

  • 33

  • Noise level (dBA)

  • 62

  • Drive (kW)

  • 4 kW 3 VAC

  • Oil (l)

  • 100

  • Length machine (mm)

  • 1200

  • Width machine (mm)

  • 600

  • Height machine (mm)

  • 1700

  • Weight (kg)

  • 750

  • CGS (Guide for
    limitation of the conicity)

  • HiDS (Efficient hydraulic
    Suction System)

  • Options

* Depending on the fitting.
** With base dies.

Video

Type of dies

Pressbacken
237L
ø mm -mm-
54 118
57 118
62 118
67 118
71 118
74 118
78 118
84 118
86 118
90 118
96 118
103 118
106 126
111 126
116 126
121 126
126 126
131 126
239-xx-øyy



ø mm -mm-
6,8 50
9 50
10 50
12 65
14 65
16 65
17 65
19 65
20 65
22 65
24 65
26 65
28 80
30 80
31 80
32 80
34 80
36 80
38 80
39 80
40 80
44 80
47 100
50 100
54 100
57 100
62 100

First Class Advantages

Packages

A Package includes the machine with dies.

  • Package = Machine + PB Ø 17, 20, 24, 28, 32, 40, 44, 50, 57, 71 + 237.239.2L2 + QDC 239.5 + QDS 239 B + Control C.2

Accessories

Extend this machine at all times with the following accessories:

Control C.2 Accessories

C.2

Description

Grundbacken-90-Grad-Ellbogen
The compact, slim and ergonomic design allows working on both sides.
The fixed 6 o’clock jaw enables the safe and force-saving positioning of the workpiece.
Scan-Barcode
The barcode scanner allows you to capture data quickly and efficiently.
