UNIFLEX-Hydraulik GmbH

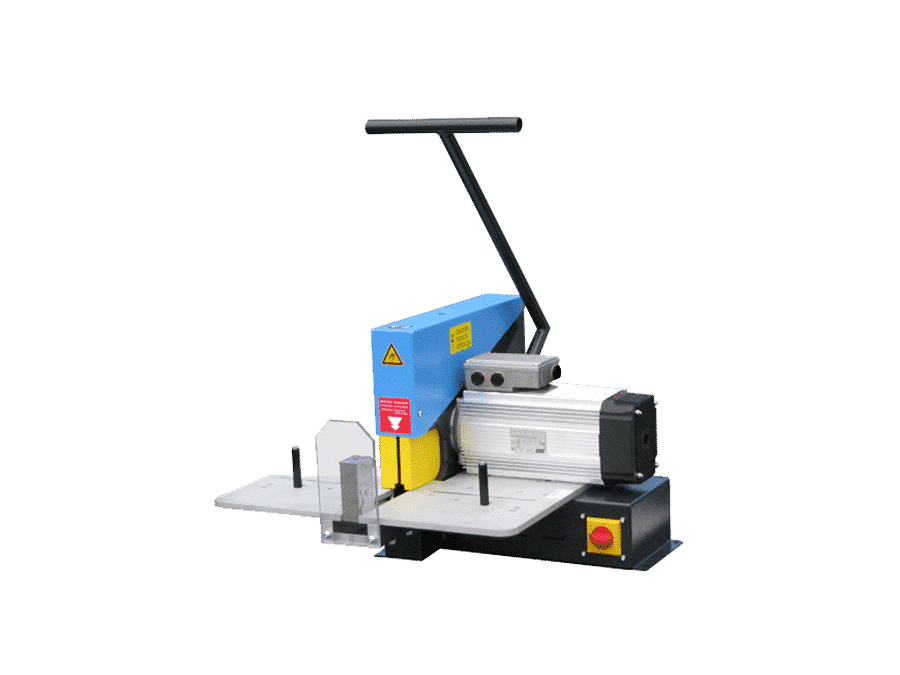

EM 6 M
EM 6 M
Hose cutting machine

EM 6

For decades, hose cutting machines from UNIFLEX have been synonymous with the highest precision and robustness. The solid and compactly built tools are characterized by their qualitatively impeccable cutting function. Clean, solid and safe to use. These cut-off machines combine all the proven UNIFLEX features that we as demand for quality and innovation.

Variations:

  • EM 6 DC
  • EM 6 M
  • EM 6 P
  • EM 6 Ecoline
Request product

Features

Longer service life due to higher quality

  • Unique drive motors
  • Double bearing
  • Massive design for vibration damping
  • Less waste, more cuts
  • Less pollution
  • Faster and straighter cutting

Quality steel knife

  • German development of durable steel blades to reduce operating costs

Compact design

  • Finds place in any workshop
  • Ideal for on-site service

Ecoline version

  • Entry level model in the same quality

CE compliant

  • Engine brake
  • Knife guard

Technical data

  •
  • EM 6 DC
  • EM 6 M
  • EM 6 P
  • EM 6 Ecoline

  • Production SAE R 13 & SAE R 15

  • –
  • 1¼ “
  • 1¼ “
  • –

  • Workshop SAE R 13 & SAE R 15 *

  • 2 “
  • 2 “
  • 2 “
  • 2 “

  • SAE R 12

  • 2 “
  • 2 “
  • 2½ “
  • 2 “

  • Industry

  • 2 “
  • 3 “
  • 3 “
  • 2 “

  • Max. Outside (mm)

  • Ø 75
  • Ø 85
  • Ø 90
  • Ø 80

  • Feed

  • manual
  • manual
  • pneumatic
  • manual

  • Noise level (dBA)

  • 93
  • 90
  • 90
  • 90

  • Brake motor

  • –
  • –

  • Suction connection (mm)

  • Ø 40
  • Ø 60
  • Ø 60
  • Ø 80

  • Drive

  • 3,2 kW 24 VDC
  • 4,6 kW 3 VAC
  • 4,6 kW 3 VAC
  • 2,4 kW 1 VAC

  • Cutting blade (mm)

  • TM C 250x2x40
  • TM C 350x3x30
  • TM C 350x3x30
  • TM C 275x3x25,4

  • Length machine (mm)

  • 740
  • 745
  • 820
  • 700

  • Width machine (mm)

  • 360
  • 690
  • 785
  • 510

  • Height machine (mm)

  • 610
  • 430
  • 755
  • 700

  • Weight (kg)

  • 29
  • 75
  • 110
  • 45
  • Accessories

  • Table

  • Extraction unit **

  • Extraction unit **

  • UVC 36 Adapter (230 Volt)

  • 777.153
  • 777.055
  • 777.055
  • 777.056

  • UVC 100 Adapter

  • 330.083.3
  • 330.081.3
  • 330.081.3
  • 330.082.3

  • Hose guide 2,000 mm
    (UHG 14)

  • –

Video

First Class Advantages

Standard

The following products are supplied with the purchase of the product and are included in the price.

Accessories

Extend this machine at all times with the following accessories:

Description

Biegebolzen
Bending bolts result in straight cuts, which have a positive effect on the lifetime of the knives
Trennmesser
Cutting knife
TM = smooth
TM G = slotted
TM C = coated

Cutting knife
